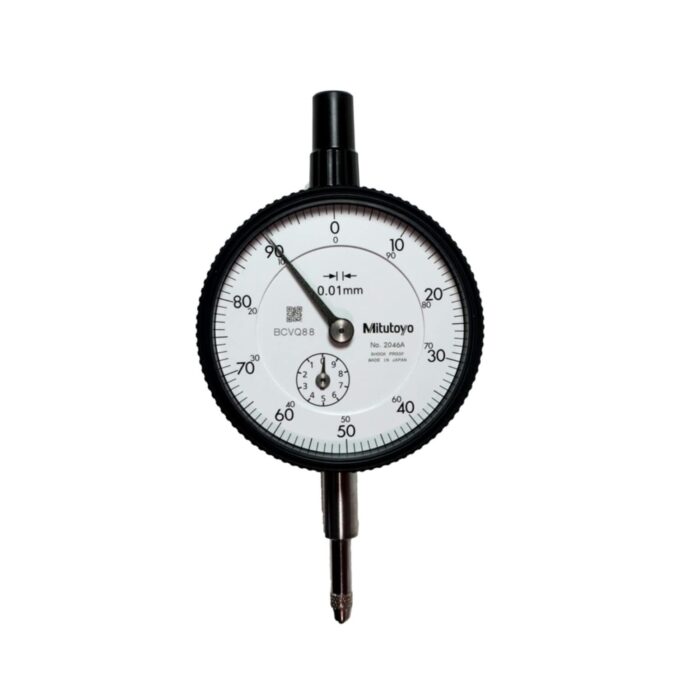

Mitutoyo 2046A Dial Indicator

Mitutoyo 2046A Dial Indicator – Standard Type (Series 2)

The Mitutoyo 2046A is a high-precision Standard Type Dial Indicator designed for reliable measurement and long-lasting durability. Featuring a lug back, 10 mm measuring range, and 0.01 mm graduations, it delivers consistent performance across demanding workshop and industrial applications.

Key Features:

• Measuring range: 0–10 mm

• Graduation: 0.01 mm (0–100 Dial Reading)

• 1 mm per revolution

• Lug Back with 8 mm stem

• Outer frame diameter: 57 mm

• Supplied with limit pins and outer frame clamp as standard

• Water- and oil-resistant front face (secured adhesion between outer frame & crystal with O-ring seal)

• Hardened stainless steel spindle for durability against heavy use

• Carbide contact point for precision and wear resistance

• Stainless steel grand gear resists deformation and wear

• Hard-coated crystal for scratch and chemical resistance

Specifications:

• Model: 2046A

• Type: Standard, Lug Back

• Range: 10 mm

• Graduation: 0.01 mm

• Accuracy: ±0.013 mm

• Dial Reading: 0–100

• Stem Diameter: 8 mm

• Brand: Mitutoyo, Japan
