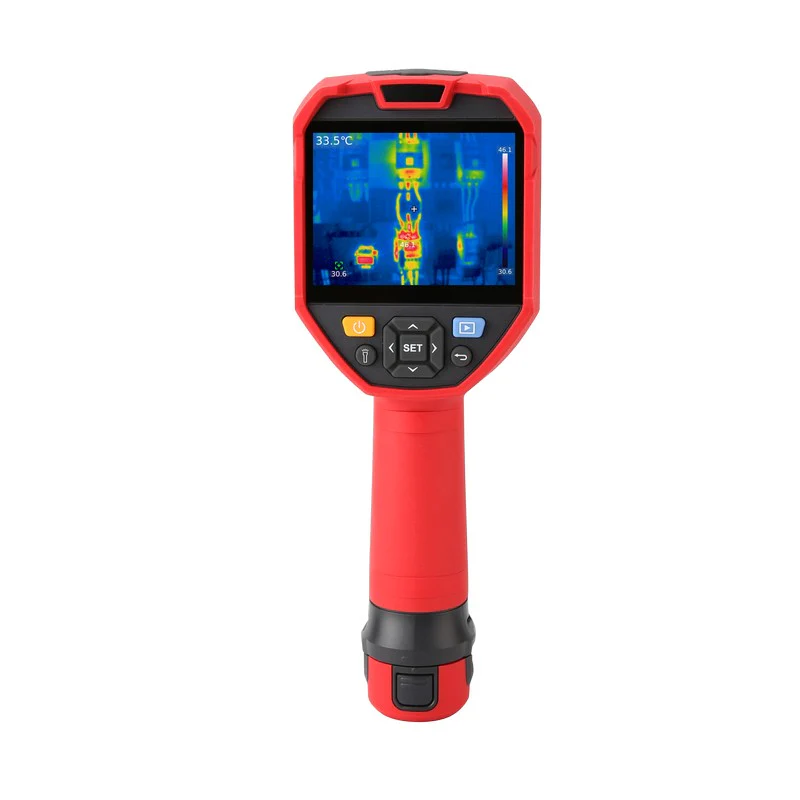

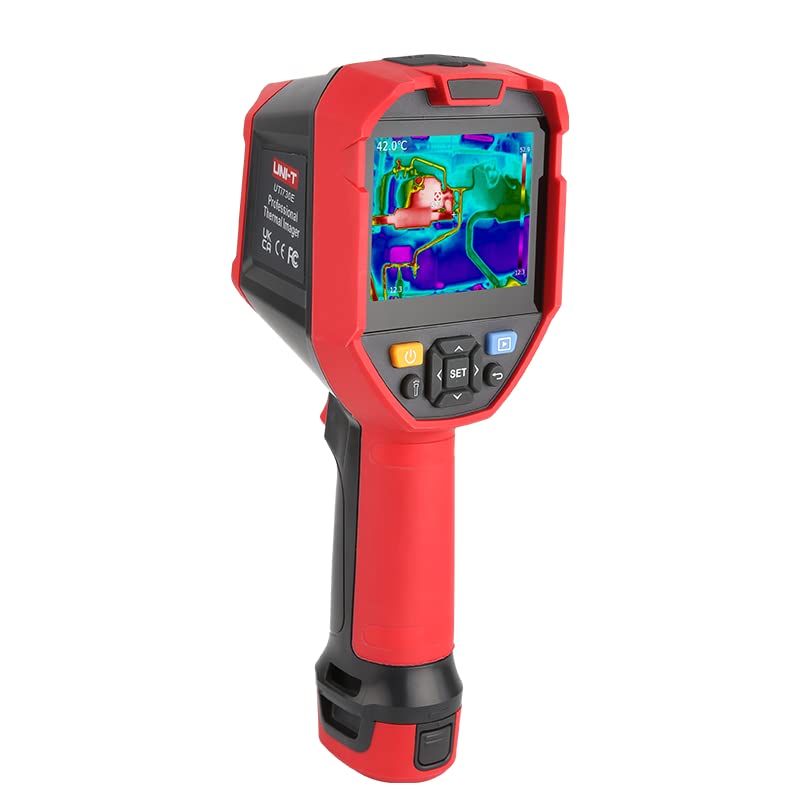

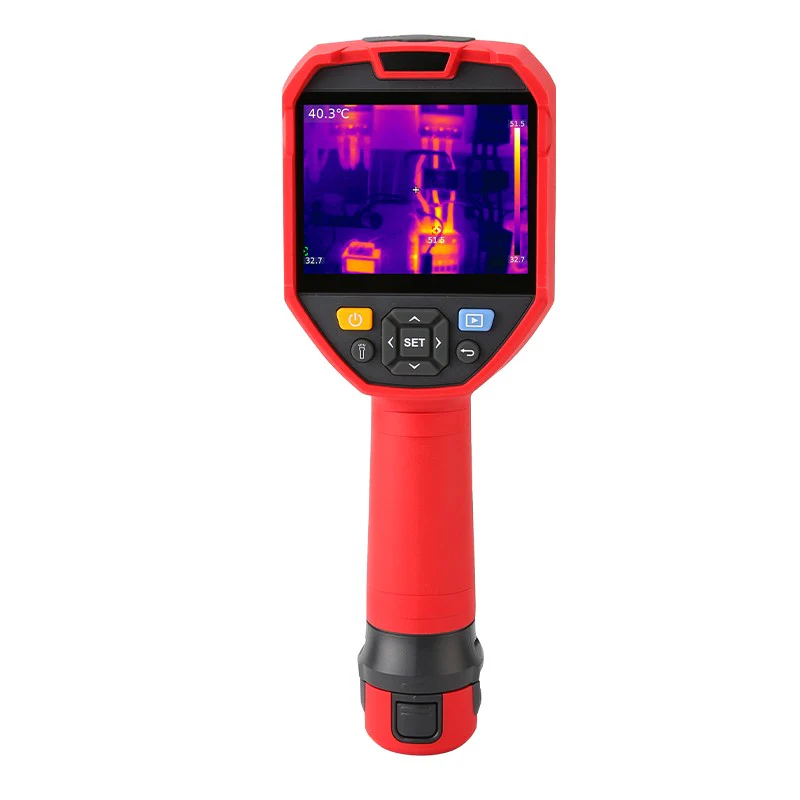

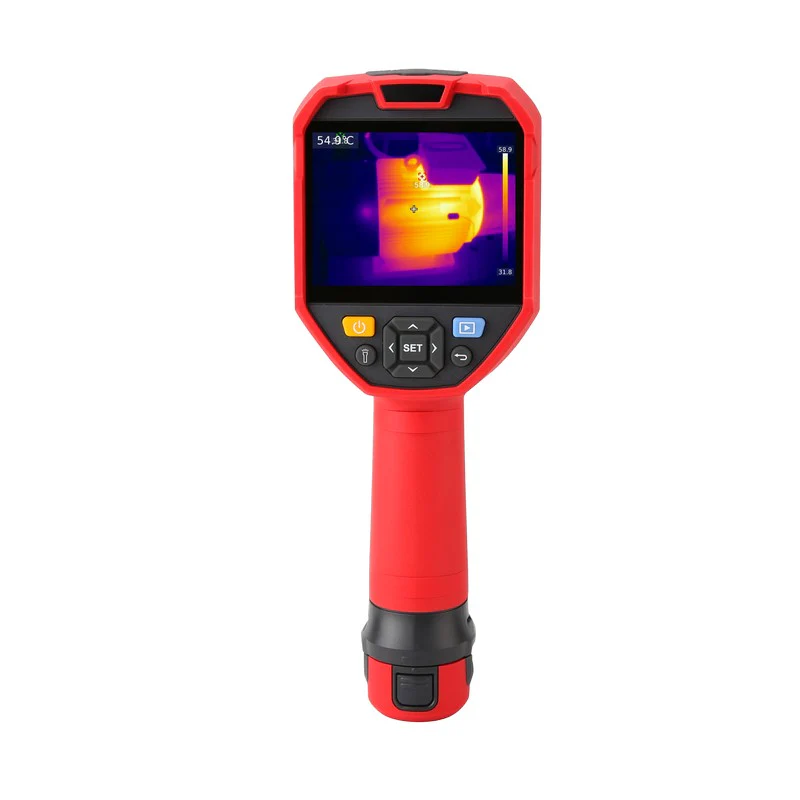

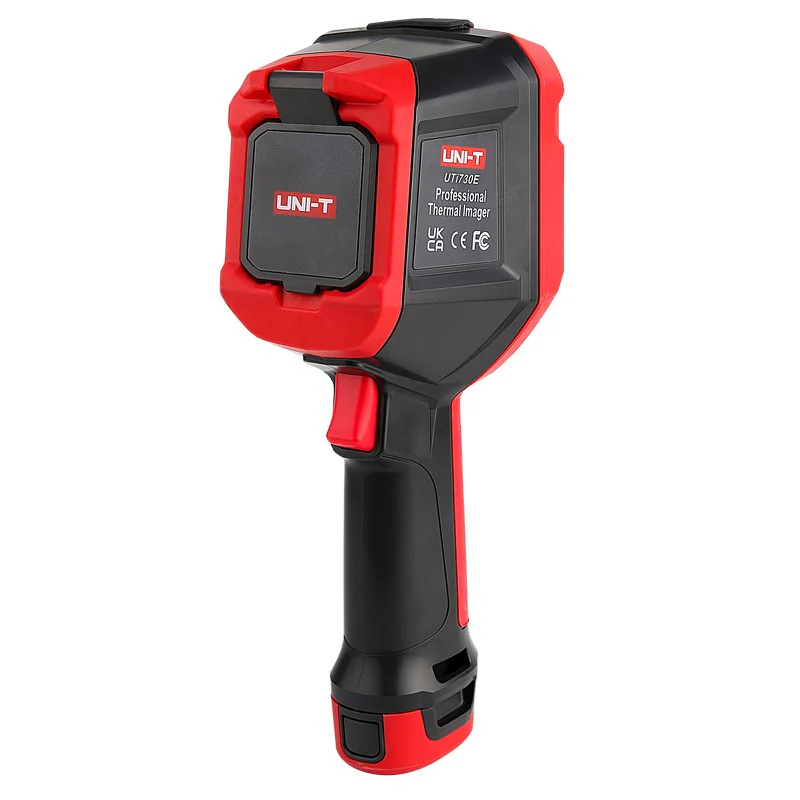

UNI-T UTi730E Enhanced Thermal Imager Supplier in UAE & GCC

ThermoPro UAE is a trusted supplier of the UNI-T UTi730E Enhanced Thermal Imager across the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and the GCC region. Designed for industrial maintenance, electrical inspections, HVAC diagnostics, predictive maintenance, and building surveys, the UTi730E combines 320 × 240 infrared resolution, focus-free operation, Wi-Fi connectivity, and a rugged IP54 design to deliver fast, reliable thermal inspections in demanding environments.

Whether you’re inspecting electrical panels, monitoring motors, detecting insulation defects, or troubleshooting mechanical equipment, the UNI-T UTi730E provides accurate thermal imaging with professional-grade analysis tools.

---

Why Choose the UNI-T UTi730E Thermal Imager?

The UNI-T UTi730E offers outstanding thermal performance with 76,800 temperature measurement points and a ≤65mK NETD thermal sensitivity, allowing technicians to detect even subtle temperature variations before equipment failure occurs.

Unlike manual-focus thermal cameras, the focus-free optical system enables true point-and-shoot operation, allowing users to capture clear radiometric images instantly without adjusting focus.

With built-in Wi-Fi, advanced image analysis, multiple display modes, and removable batteries, the UTi730E is an ideal solution for maintenance professionals who require efficiency, portability, and dependable performance.

---

Key Features

• 320 × 240 Infrared Resolution
  • 76,800 thermal measurement pixels
  • High-quality thermal imaging for industrial diagnostics
• ≤65mK Thermal Sensitivity (NETD)
  • Detects extremely small temperature differences
  • Ideal for early fault detection
• Focus-Free Lens
  • No manual focusing required
  • Fast point-and-shoot inspections
• 3.5-inch IPS Display
  • 640 × 480 resolution
  • Wide viewing angles
  • Bright display for indoor and outdoor use
• Four Image Modes
  • Thermal
  • Visible Light
  • Fusion
  • Picture-in-Picture
• Built-in Wi-Fi
  • Wireless image transfer
  • Mobile app connectivity
  • PC software for detailed analysis
• Advanced On-Screen Analyzer
  • 5 Spot Measurements
  • 1 Line Measurement
  • 3 Rectangle Areas
  • 3 Circle Areas
• Six Isotherm Modes
  • Auto
  • Ratio
  • Below
  • Above
  • Section
  • Manual
• Time-Lapse Recording
  • Automatic image capture
  • 10–1000 second intervals
• Hi/Lo Temperature Alarm
  • Visual alarm
  • LED flashlight indication
• Detachable 5200mAh Battery
  • More than 4 hours operating time
  • Hot-swappable battery for continuous inspections
• Industrial Durability
  • IP54 dust and splash protection
  • 2-meter drop resistance

---

Professional Thermal Imaging Performance

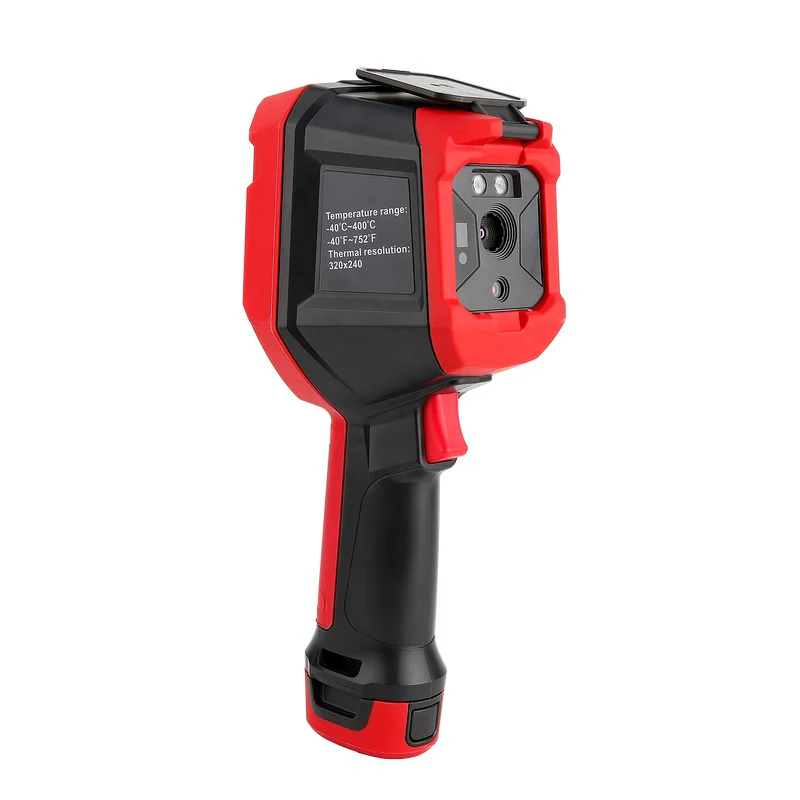

The UTi730E features a 320 × 240 uncooled VOx infrared detector that captures 76,800 independent temperature readings in every image.

Operating in the 8–14 μm long-wave infrared spectrum, it delivers accurate thermal images suitable for:

• Electrical maintenance
• Mechanical inspections
• Building diagnostics
• Process monitoring
• Facility maintenance

The high detector resolution provides excellent thermal detail for identifying hotspots, overloaded circuits, insulation failures, and equipment abnormalities.

---

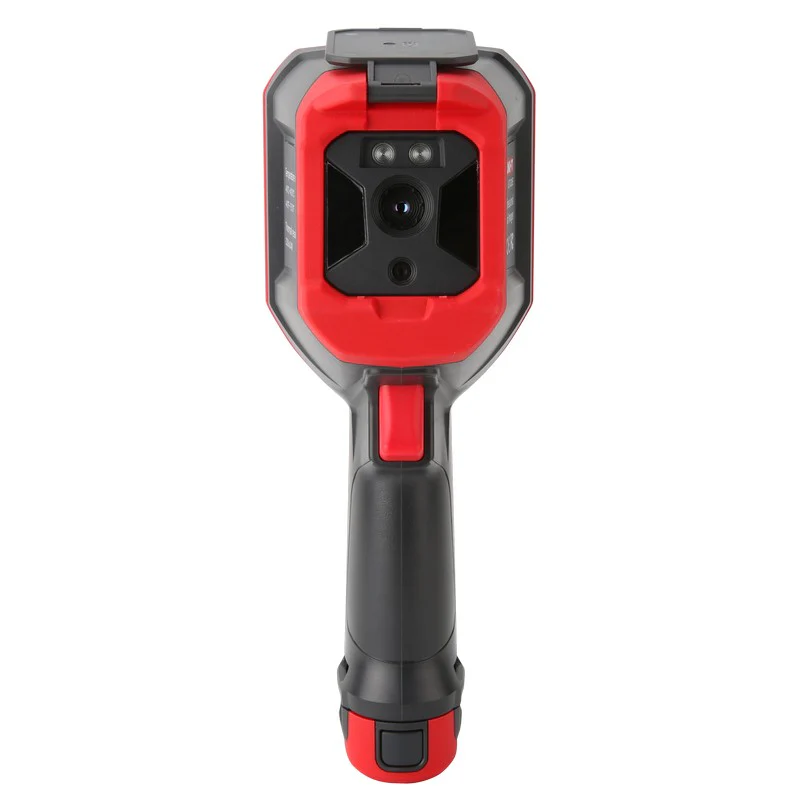

Focus-Free Technology

Traditional thermal cameras require manual focusing before every inspection.

The UTi730E eliminates this step through its fixed-focus optical system, enabling technicians to:

• Scan equipment faster
• Reduce inspection time
• Capture instantly usable thermal images
• Avoid blurred measurements

This makes the camera particularly useful for routine preventive maintenance and walk-through inspections.

---

Bright 3.5″ IPS Display

The integrated 3.5-inch IPS screen provides:

• 640 × 480 display resolution
• Excellent color reproduction
• Wide viewing angles
• Easy operation under various lighting conditions

Users can instantly switch between:

• Thermal Image
• Visible Image
• Fusion View
• Picture-in-Picture

Fusion transparency is adjustable from 0–100%, helping users identify equipment locations more easily.

---

Built-in Wi-Fi Connectivity

The UNI-T UTi730E includes integrated Wi-Fi for fast image sharing.

Benefits include:

• Wireless transfer to smartphones
• Mobile inspection reports
• Instant sharing with maintenance teams
• Cloud storage compatibility
• Remote review

Radiometric JPEG images retain full temperature data, allowing measurements and emissivity settings to be adjusted later using UNI-T PC software.

---

Advanced Thermal Analysis Tools

The built-in analyzer allows comprehensive inspection without requiring external software.

Simultaneously monitor:

• 5 Spot Temperature Points
• 1 Line Profile
• 3 Rectangle Areas
• 3 Circular Areas

Each area displays:

• Maximum temperature
• Minimum temperature
• Center temperature

Adjustable emissivity (0.01–1.00) improves measurement accuracy across metals, painted surfaces, concrete, plastics, insulation, and composite materials.

---

Six Intelligent Isotherm Modes

Highlight temperature ranges instantly using six configurable modes:

• Auto
• Ratio
• Above
• Below
• Section
• Manual

These modes make abnormal heating patterns immediately visible during inspections.

---

Time-Lapse Inspection

The built-in interval timer captures thermal images automatically every:

• 10 seconds
• up to
• 1000 seconds

Ideal for monitoring:

• Heating cycles
• Cooling systems
• Motors
• Heat tracing
• Industrial processes

---

Smart Temperature Alarm

Users can define high and low temperature limits.

When thresholds are exceeded, the camera activates:

• On-screen visual warning
• LED flashlight notification

Perfect for noisy industrial environments where audible alarms may be missed.

---

Removable Battery System

The 5200mAh lithium battery provides:

• More than 4 hours continuous runtime
• USB Type-C charging
• One-touch battery capacity indicator
• Quick battery replacement

Carrying spare batteries enables uninterrupted inspections throughout the workday.

---

Applications

Electrical Panel Inspection

Identify:

• Loose terminals
• Overloaded breakers
• Unbalanced loads
• Hot connections
• Failing switchgear

---

Predictive Maintenance

Monitor:

• Electric motors
• Pumps
• Bearings
• Compressors
• Gearboxes

Detect thermal changes before mechanical failures occur.

---

Building Diagnostics

Locate:

• Air leakage
• Missing insulation
• Moisture intrusion
• Heat loss
• Building envelope defects

Ideal for energy audits and building maintenance.

---

HVAC Inspection

Inspect:

• Ductwork
• Air handlers
• Chillers
• Compressors
• Heating systems

Quickly identify airflow problems and thermal inefficiencies.

---

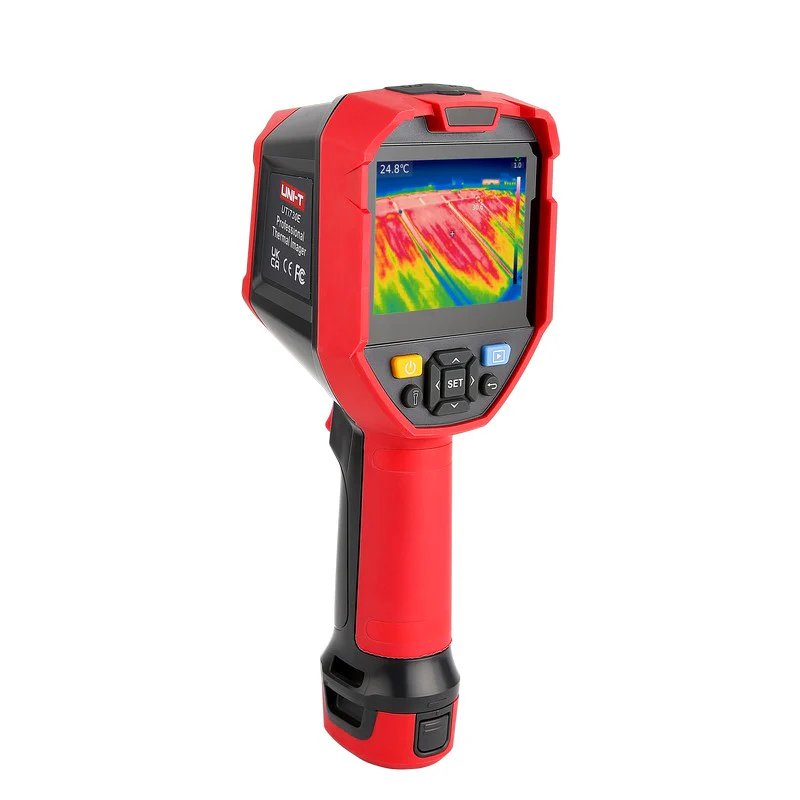

Solar Panel Inspection

Detect:

• Hot spots
• Defective cells
• Failed junction boxes
• Bypassed strings
• Underperforming PV modules

Improve solar system performance through non-contact thermal inspection.

---

Technical Specifications

Specification	Details
Infrared Resolution	320 × 240
Measurement Pixels	76,800
Thermal Sensitivity	≤65mK (NETD)
Spectral Range	8–14 μm
Display	3.5″ IPS
Screen Resolution	640 × 480
Image Modes	Thermal, Visual, Fusion, PIP
Focus	Focus-Free
Wi-Fi	Yes
Time-Lapse	Yes
Analyzer	5 Points, 1 Line, 3 Rectangles, 3 Circles
Isotherm	6 Modes
Battery	5200mAh Li-Ion
Operating Time	≥4 Hours
Charging	USB Type-C
Protection	IP54
Drop Test	2 meters

---

Industries Served

The UNI-T UTi730E is widely used across:

• Power Generation
• Electrical Contracting
• Oil & Gas
• Manufacturing
• Petrochemical Plants
• Utilities
• Building Maintenance
• HVAC Services
• Renewable Energy
• Facility Management
• Industrial Automation
• Infrastructure Inspection

---
